Raven – The Ultimate Titanium Fatbike Bikepacking Frame

Frame only Price £2000

Frame - smart shift gearbox - Carbon Wasp Cranks = £4150

The Raven is purpose-built for bikepacking adventures, designed with real-world experience to ensure every detail enhances your ride. By integrating the stability and versatility of a fatbike, this frame provides unmatched capability for tackling rugged terrain, remote trails, and multi-day expeditions.

Handcrafted from Grade 9 – 3AL/2.5V titanium, the Raven delivers exceptional durability, comfort, and longevity, making it the perfect companion for a lifetime of adventure. It’s packed with all the features you need for self-supported exploration, whether you're navigating rocky singletrack or grinding out endless miles on backcountry roads.

Now available with a Pinion gearbox, giving you the flexibility to build the ultimate adventure machine.

Would you like to highlight any specific mounting options, tire clearances, or geometry details? 🚴‍♂️🔥

Close-up of a Panasonic G1.12 electric mountain bike motor and part of the chainring on a black tire.
Close-up of a mountain bike's rear wheel hub, cassette, and derailleur with colorful flowers in the background.

Raven Features – Built for the Ultimate Bikepacking Adventure

Designed with bikepacking at its core, the Raven now comes with a Pinion Smart shift Gearbox offering endless miles with zero maintenance. The Smart Shift offers super reliable shifting even stationary.

Optimized for Bikepacking Gear

The Raven features multiple mounting points for bottles, bags, and a rear rack, ensuring you have plenty of storage options. Rack mounts have become the go-to choice for serious bikepackers, eliminating the instability of high-mounted seat packs. This also means you can run a dropper post, giving you even more confidence on technical terrain.

Flat or Riser Bar – Designed for Off-Road Exploration

Unlike traditional drop-bar adventure bikes, the Raven is designed to be run with either a flat or riser bar, catering to the needs of off-road bikepackers. This setup provides better control, stability, and comfort—especially for tackling technical UK trails and demanding terrain.

Multi-Wheel Compatibility for Ultimate Versatility

The Raven accommodates multiple wheel sizes, making it adaptable to different terrains and riding styles—so you can customize your setup without needing another bike (though, let’s be honest, we all want another bike!).

Adjustable Sliding Dropouts

The sliding rear dropouts take care of tensioning the chain, or belt; both can be fitted. The frame comes with a junction to alloow the fitment of a Gates Belt Drive 🚀🔥

technical information.

  • Headset Size: -   Top cup = IS 42  , Lower cup = IS 52

  • Rear Axle: -   12 x 197mm (Bolt through axle included).

  • Bottom bracket - Pinion Gear Box.

  • Seat Post Size:  -   31.6mm

  • Seat Clamp Size: - 34.9mm (Included)

  • Dropper Post:  -  Internal Stealth cable routing.

  • Cable Routing - Internal cable routing (Guided). (External Option)

  • Frame split for Belt fitment.

  • Battery stowage in downtube, access by removing Gearbox. (External charging port)

  • Pannier rack mounts.

  • 3 x anything cage mounts.

  • Sliding dropouts.

  • Sizes:  -  Small, Medium, Large, X-Large

  • Max tyre size - 26x4.8, 27x4.5, 29 x 3.0

  • Suspension fork travel - 100 to 130mm

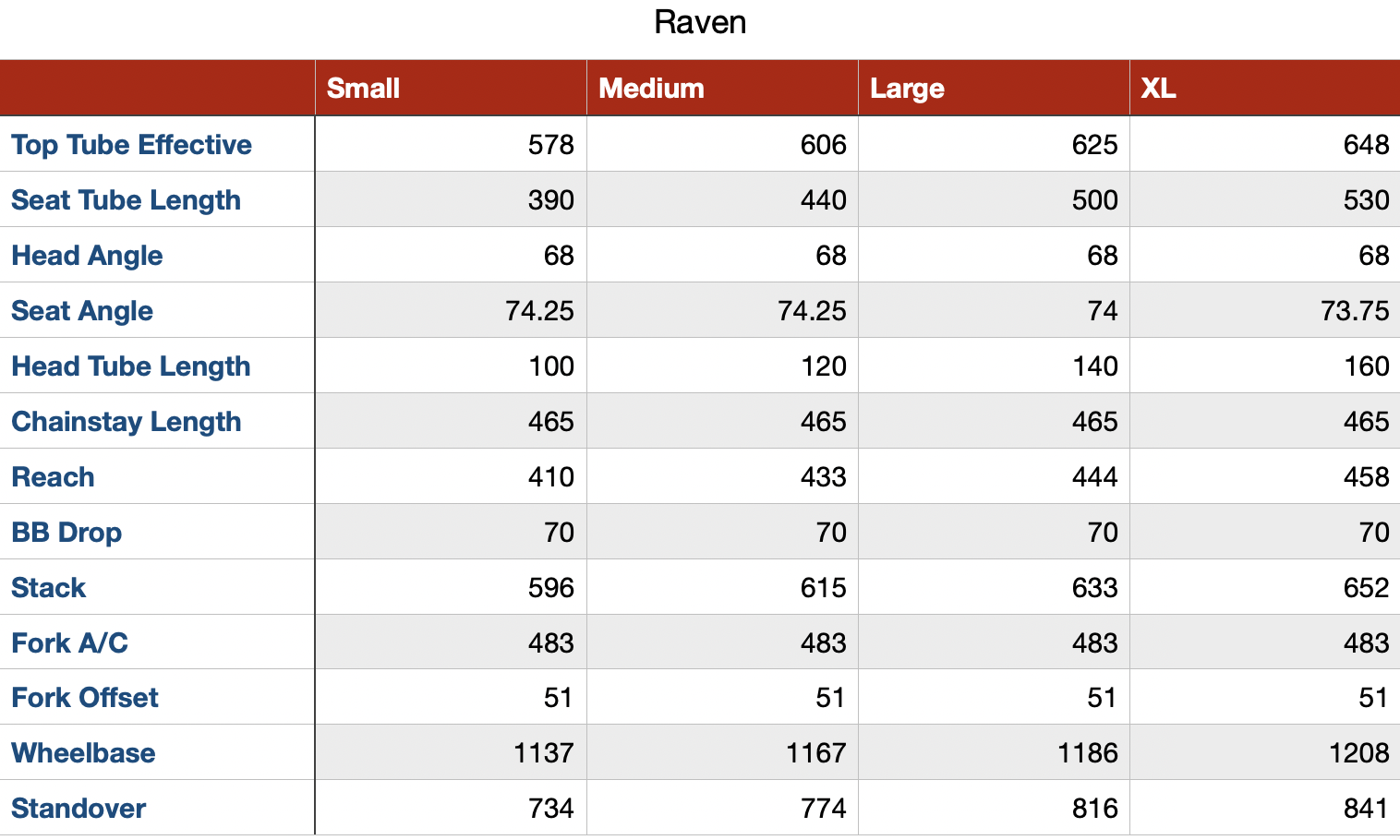

Bicycle geometry chart for Raven model showing size options Small, Medium, Large, and XL with dimensions for top tube effective, seat tube length, head angle, seat angle, head tube length, chainstay length, reach, BB drop, stack, fork A/C, fork offset, wheelbase, and standover.

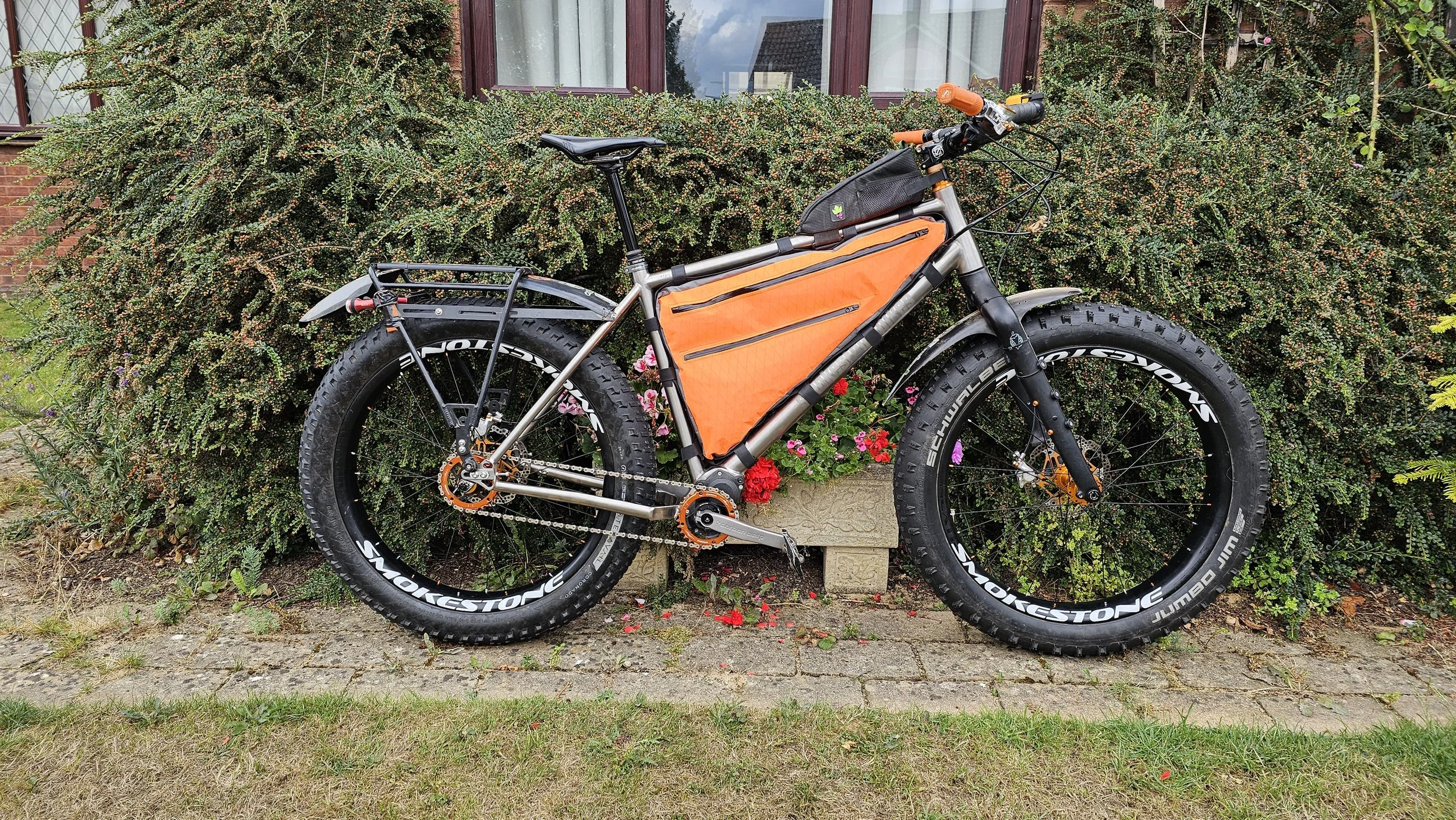

A mountain bike with fat tires and disc brakes is parked against a hedge outside a house with a bay window and brown framing. The bike has a matte gray frame, orange accents on the hub and chainring, and black suspension forks. Pink and red flowers are visible in a planter at the base of the hedge.
A black and silver mountain bike with large, knobby tires, orange hubs, and handlebar grips resting against a flower bed with pink and red flowers, next to a brick house with greenery and plants.
A bicycle frame is assembled on a workbench with tools hanging on a wooden wall behind it, including wrenches,pliers, hammers, and screwdrivers. Various small items such as tape, gloves, and a water bottle are also on the workbench.

Pricing

£4150 - Frame, Gearbox and Cranks

£2000 - Frame only.
