The BOW Ti
The Smokestone BowTi is a premium titanium bike frame designed for adventure, durability, and versatility. Engineered for gravel, bikepacking, and off-road exploration, the BowTi offers a perfect balance of strength, lightweight performance, and all-day comfort. With custom geometry and precision craftsmanship, this bespoke titanium frame is built for life. Discover the ultimate ride with the Smokestone BowTi.
Quote Source - Kim Foster. BowTi owner who just completed the Altravesur bikepacking route
“The bike was excellent, very comfortable and i was extremely pleased with it. Same with the wheels, i had my doubts about carbon fibre rims, but i think they made quite a difference on the climbs paired with the relatively light Jumbo jim tyres.”
BowTi Features
Built for Adventure
The BowTi is designed to handle anything from daily errands to off-grid adventures. With rear rack mounts, you can easily carry your shopping or load up for a weekend in the hills with your camping gear—and, of course, a few beers.
Stay Hydrated
For those long rides, the frame includes three bottle cage mounts, giving you extra capacity to stay refreshed wherever the trail takes you.
Hassle-Free Maintenance
No more struggling with cable changes! The BowTi features guided internal cable routing, making maintenance quick and easy. This system also includes dropper post routing, so you can upgrade your ride without the headache.
Future-Ready Drivetrain
Equipped with a UDH (Universal Derailleur Hanger), the BowTi gives you the flexibility to run a traditional drivetrain or go completely cable-free if you prefer a wireless setup.
More Clearance, More Confidence
The BowTi retains its signature curved top tube, providing increased standover clearance—perfect for those moments when "Emergency Clearance" is absolutely necessary!
Wherever your next ride takes you, the BowTi is ready.

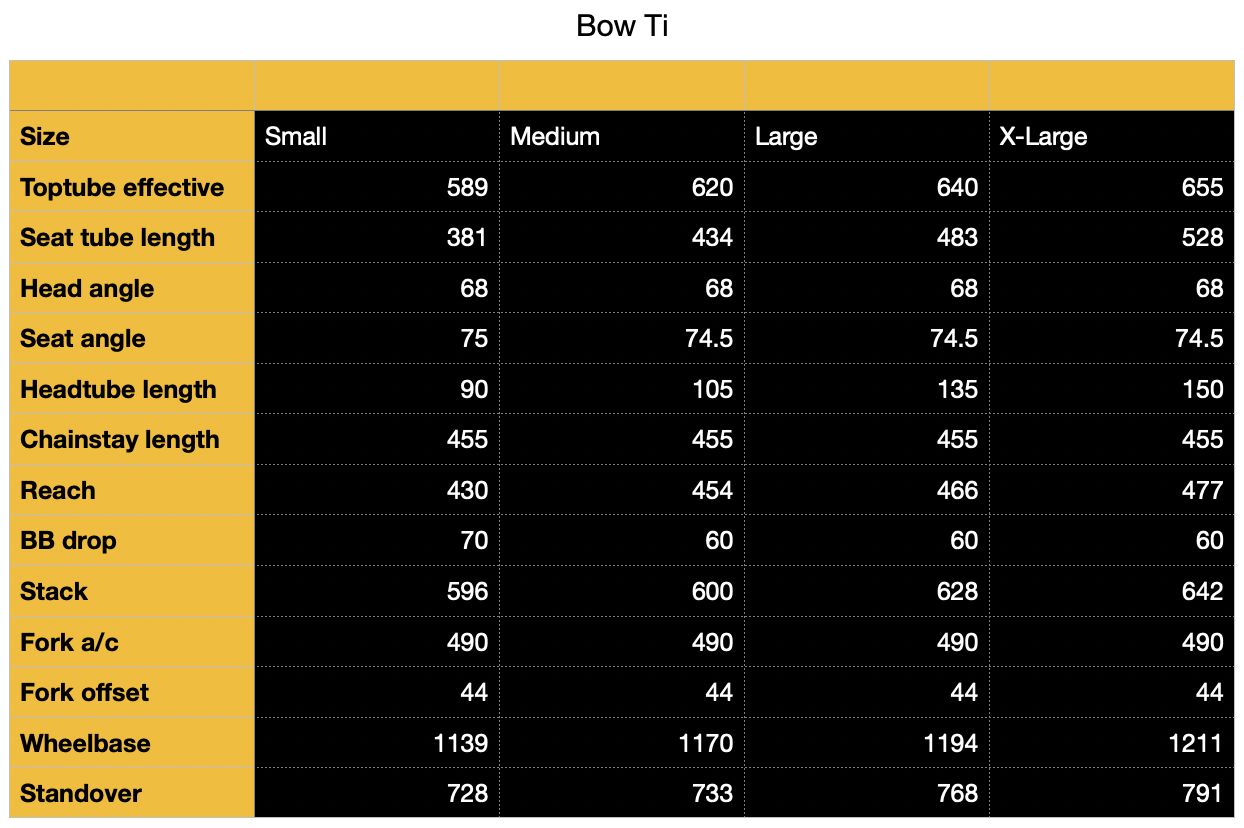

technical information.
Headset Size: - Top cup = IS 42 , Lower cup = IS 52
Rear Axle: - 12 x 197mm (Bolt through axle included).
Bottom bracket - 100mm x BSA standard threaded. (Non-Pinion)
Seat Post Size: - 31.6mm
Seat Clamp Size: - 34.9mm (Included)
Dropper Post: - Internal Stealth cable routing.
Cable Routing - Internal cable routing (Guided). (External Option)
Pannier rack mounts.
2 x bottle cage mounts.
1 x anything cage mount (3 bolt under downtube)
Fixed UDH dropouts (Sliding non UDH option available)
Sizes: - Small, Medium, Large, X-Large
Max tyre size - 26 x 4.8, 27 x 4.5, 29 x 3.0.
Suspension fork travel - 100 to 130mm
Pricing
Standard Frame only - £1650
Pinion Frame only - £2000
Complete Bike - Rigid Pro Build £5,500
Unpacking The Smokestone Bow Ti.
By Josh Parsons
