Smokestone Carbon rims
All the rims are manufactured by NEXTIE in China, after a lot of hunting around and the experience others have had with NEXTIE, we opted to have them make our rims.
There are 3 models, 2 Fatbike the SM85 and SM65, plus 1 29er, the SM35.
All can be ordered with custom coloured graphix, all we need is the RAL code to match to. Or you can simply go with the standard white.
We mainly sell to order due to the colour choice. Order take around 2 to 4 weeks.
If you are looking to improve the handling, exceleration, agility, Carbon rims are by far the most cost effective way.

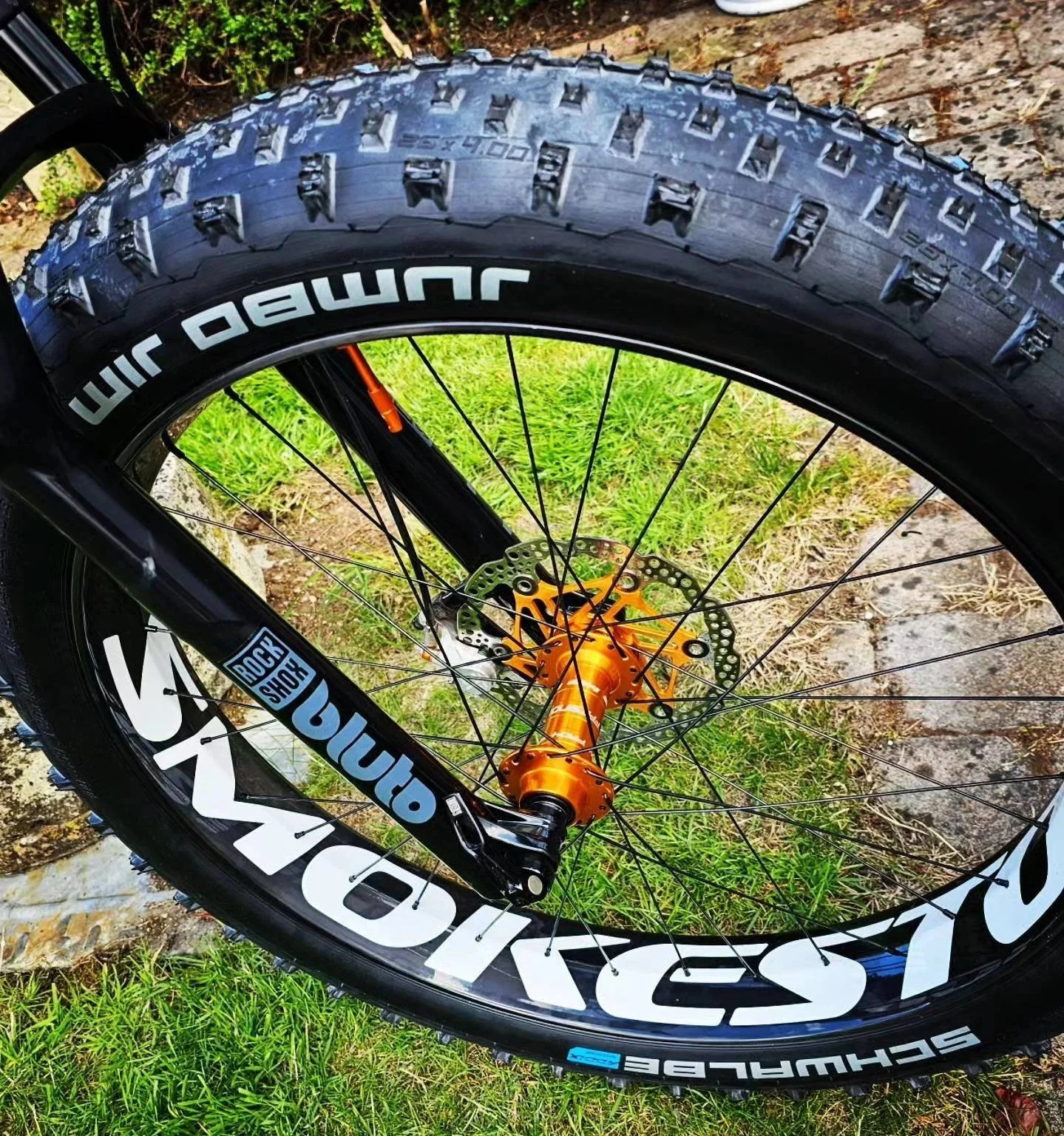

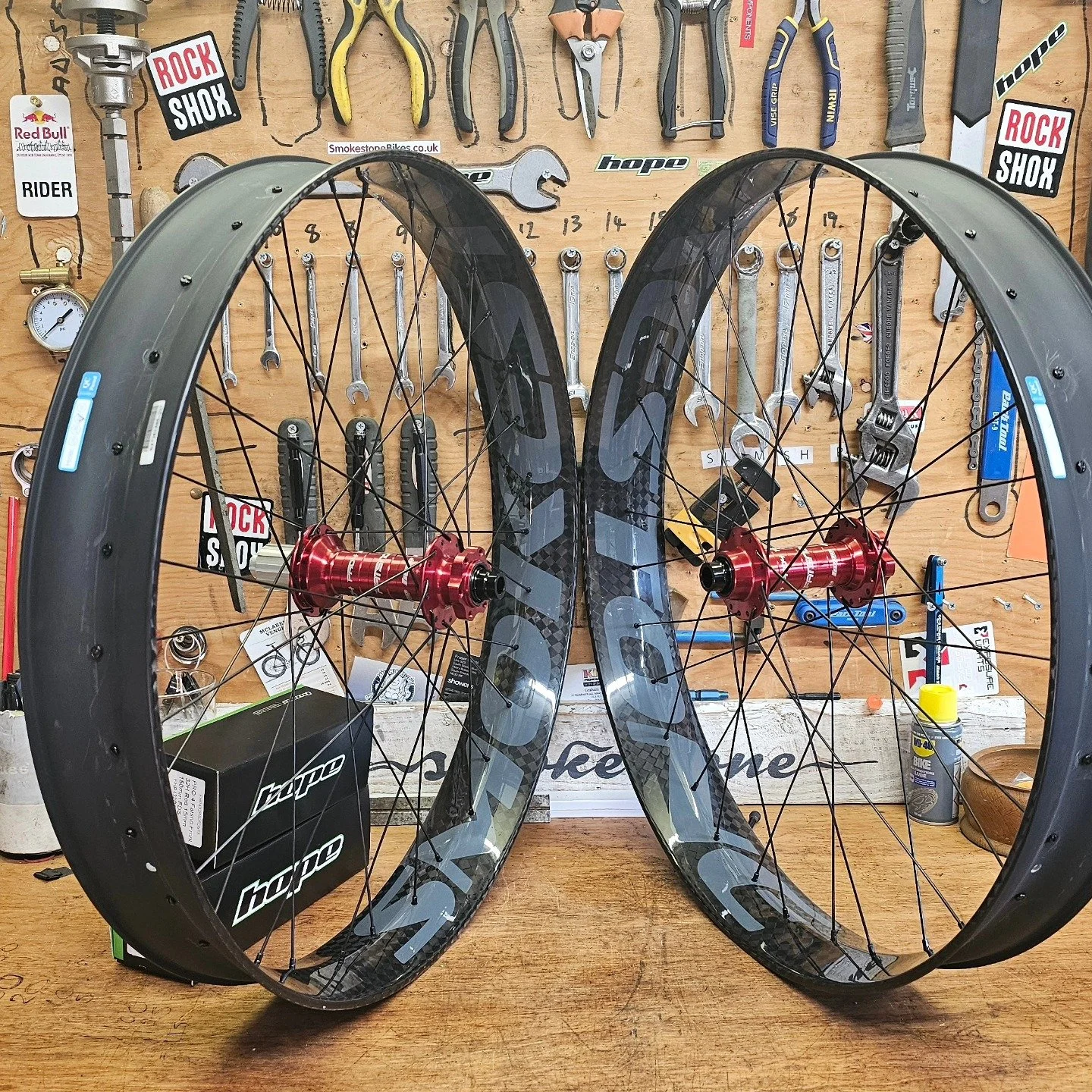

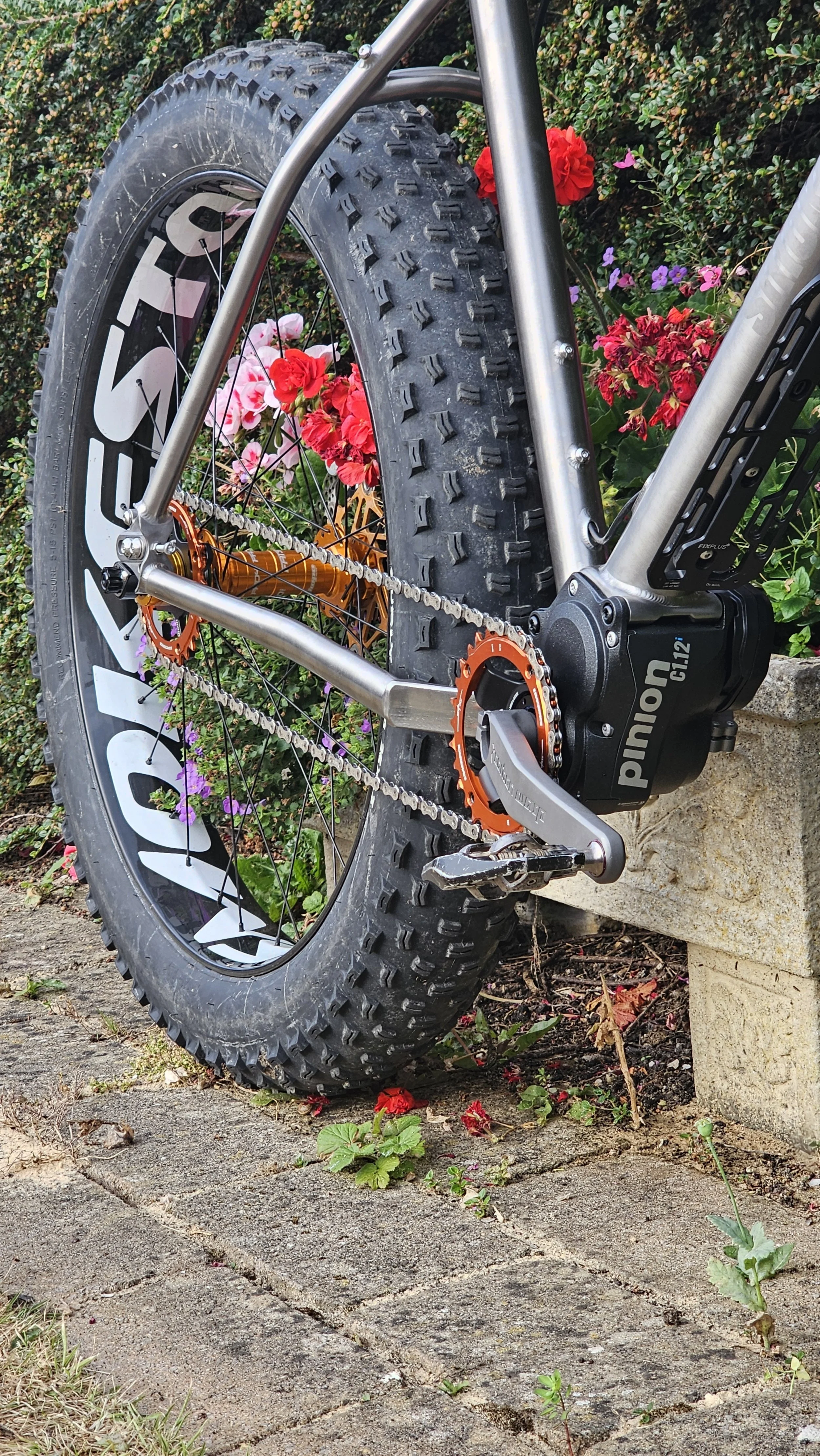

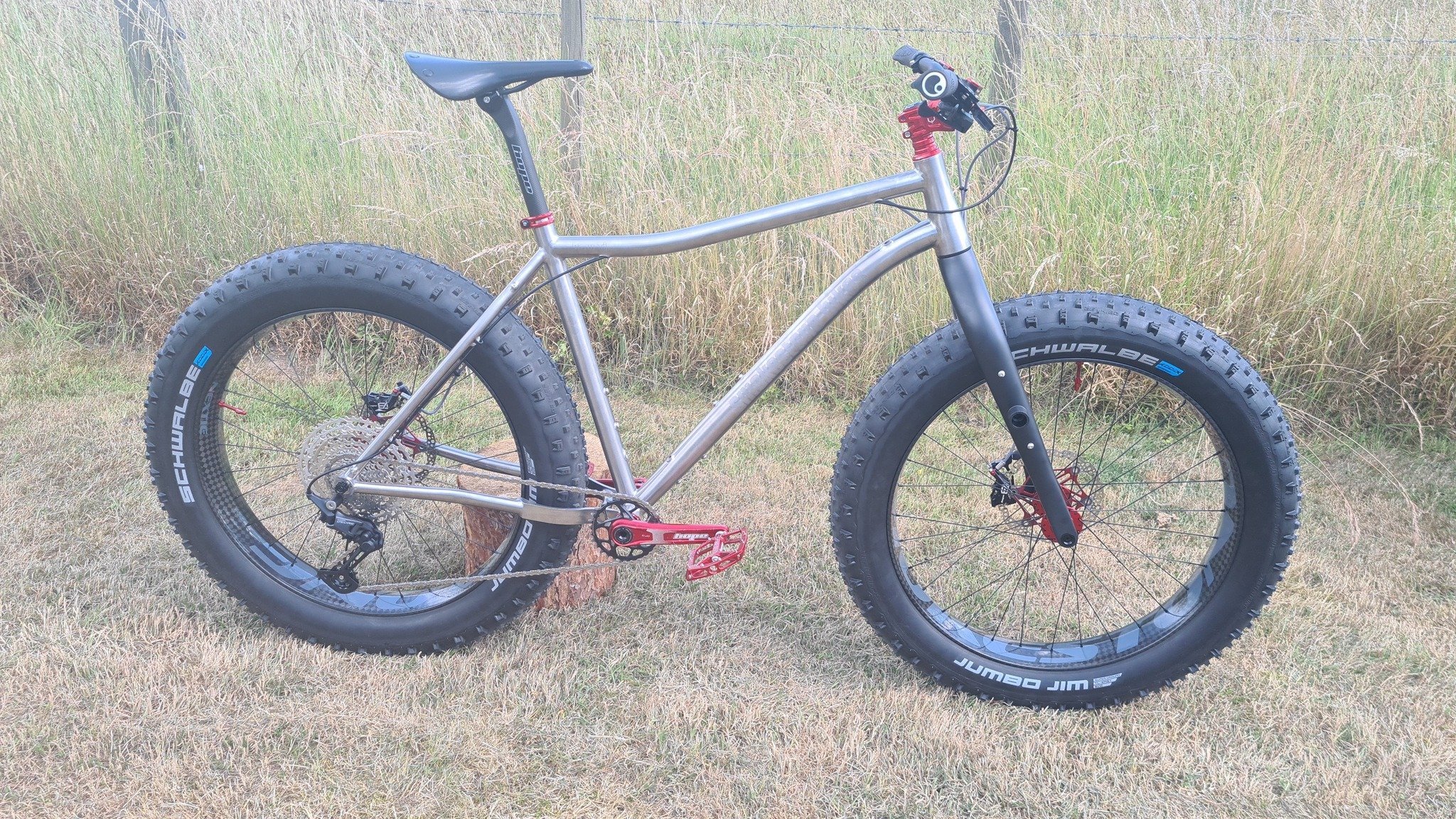

Fatbike rims - We offer a 85mm, or 65mm width in 26”. Why different widths?
The 85mm is perfect for those wishing to run 4” to 4.8” tyres, where as the 65” is perfect for 4” tyres.
The 29er rim is perfect for those looking for speed, strength and light weight. Ideal for todays gravel bikes, bikepacking or just ripping around the local trails.
Full details below.
Email your order here
SM35
£230 per rim
Rim Specification
Size: 29" x 35mm
Materials: Toray T800 + T700 Carbon Fiber
ERD: 590mm
Drilling: 32h
External Width: 35mm
Internal Width: 30mm
Rim Height: 25mm
Weight: 325g
Valve Hole Diameter: 6.5mm (Presta)
Spoke Holes Diameter: 4.5mm
Rim Type: Mountain Bike (Clincher, Hookless)
Tubeless compatible
Tire Size: 2.0"~2.5"
Load Limit (One Wheel): 100kg / 110kg
Tire Pressure: 17 ~ 30psi
Spoke Tension: 100 ~ 130kgf
Max System Weight: 126Kg
Info
The SM35 rim is made for those looking for a rim that matches up to today’s wider tyres up to 29 x 2.6.
Designed for cross-country, bikepacking and gravel riding. Light weight and high strength, means speed and reliability. just perfect for those looking for increased performance.
SM85
£350 per rim
Rim Specification
Rim Type: Fat Bike (Clincher, Hookless)
Materials: Toray T700 + T800 Carbon Fibers
Brake Interface: Disc Brake
Warranty: 3 Year
Size: 26"
ERD (Effective Rim Diameter): 544mm
External Width: 85mm
Internal Width: 79mm
Rim Height: 17.5mm
Weight: 535g
Valve Hole Diameter: 6.5mm (Presta)
Spoke Holes Diameter: 4.5mm
Spoke Holes Offset: +/-3mm
Assembly Hole Diameter: 7.5mm
Tubeless Compatible: Yes
Tire Size: 3.8" ~ 5.0"
Tire Pressure: 6 ~ 19psi
Spoke Tension: 100 ~ 130kgf
Max System Weight: 157Kg
Ideal Valve Stem Length: 24mm
SM65
£350 per rim
Specification
Size: 26"
ERD (Effective Rim Diameter): 544mm
External Width: 65mm
Internal Width: 59mm
Rim Height: 17.5mm
Weight: 425g
Valve Hole Diameter: 6.5mm (Presta)
Spoke Holes Diameter: 4.5mm
Spoke Holes Offset: +/- 3mm
Tubeless Compatible: Yes
Recommendation
Tire Size: 3.2" ~ 4.5"
Tire Pressure: 8 ~ 20psi
Spoke Tension: 100 ~ 130kgf
Max System Weight: 134Kg
Ideal Valve Stem Length: 24mm
