Mr. Harry – Our Gravel Adventure Bike

Meet Mr. Harry, our versatile gravel adventure bike designed to bridge the gap between mountain and gravel bikes. Capable of fitting up to 29 x 2.6" tyres or 700 x 40mm, the choice is yours. Crafted by hand from Grade 9, 3AL-2.5V titanium, Mr. Harry is built for riders who demand more from their drop-bar adventure bikes. Like all Smokestone frames, this bike combines exceptional versatility, generous tyre clearance, and excellent geometry for an unmatched riding experience.

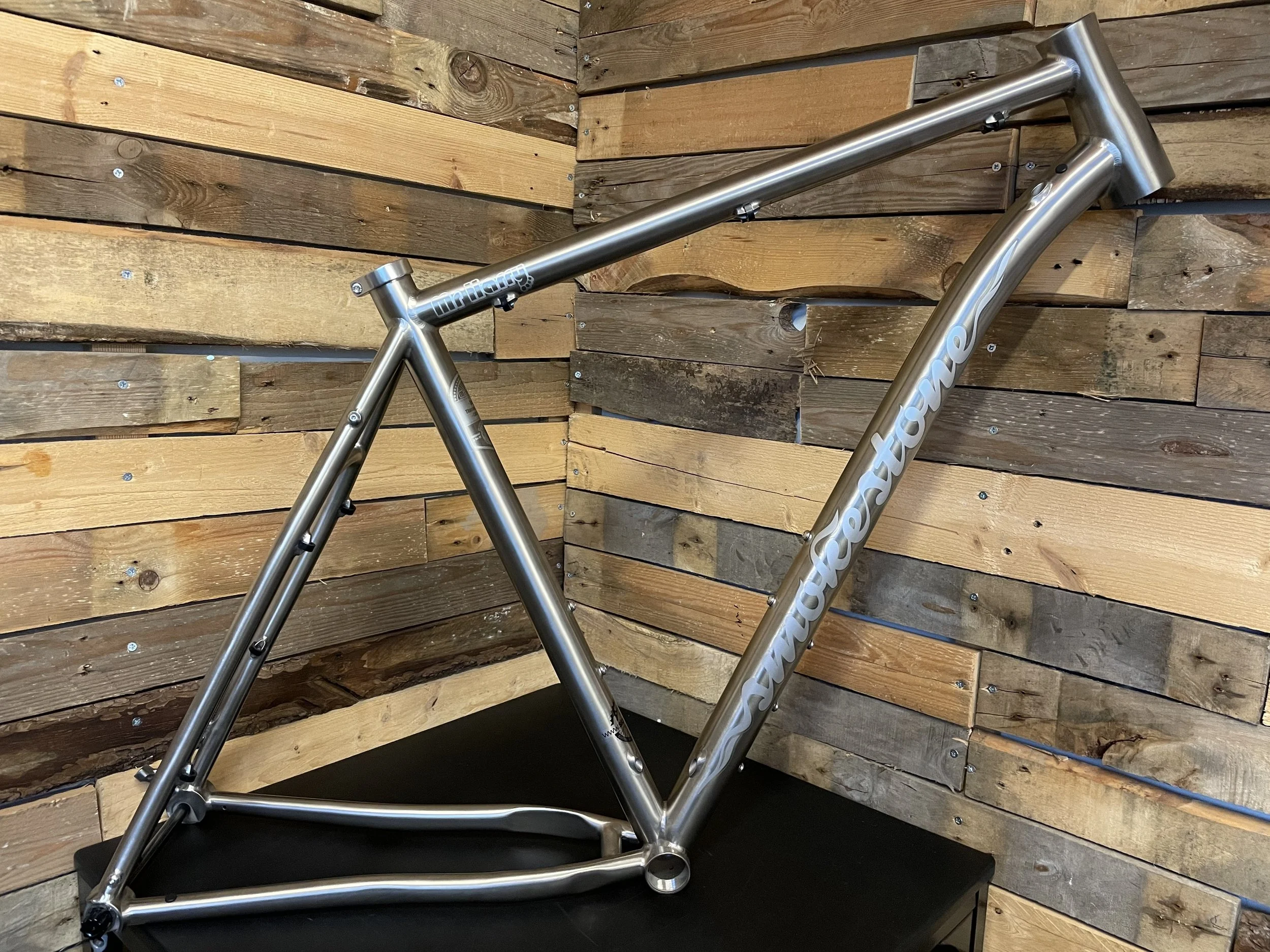

Bicycle frame on black table with wooden background

Features

Mr. Harry comes loaded with features to enhance your ride:

3 x Anything mounts for easy customization

Engraved headtube logo for a premium touch

Dropper post compatibility for added control

Rear rack mounts for all your gear

Boost (148mm) rear axle spacing, providing ample rear tyre clearance

Sliding or fixed rear dropouts

Large front triangle for maximum frame bag capacity, tailored to each size

Top tube mounts for a top tube bag

BSA threaded bottom bracket for easy spare part availability

Ability to fit an MTB suspension fork with up to 100mm of travel or a 29er rigid fork for extra clearance

Why a 29er?

The design of Mr. Harry was heavily influenced by rider feedback, with tyre clearance being a top priority. Running 29er wheels gives you the flexibility to tackle any trail with ease. You can fit both 700c and MTB tyres, offering a wide range of options depending on your adventure. Plus, Mr. Harry allows you to install a full 29er suspension fork if you're looking to add more comfort and control to your ride.

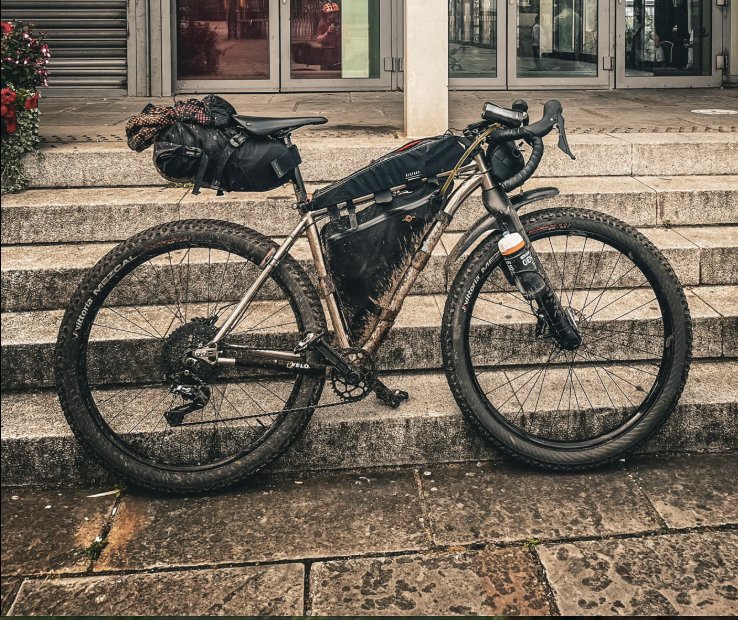

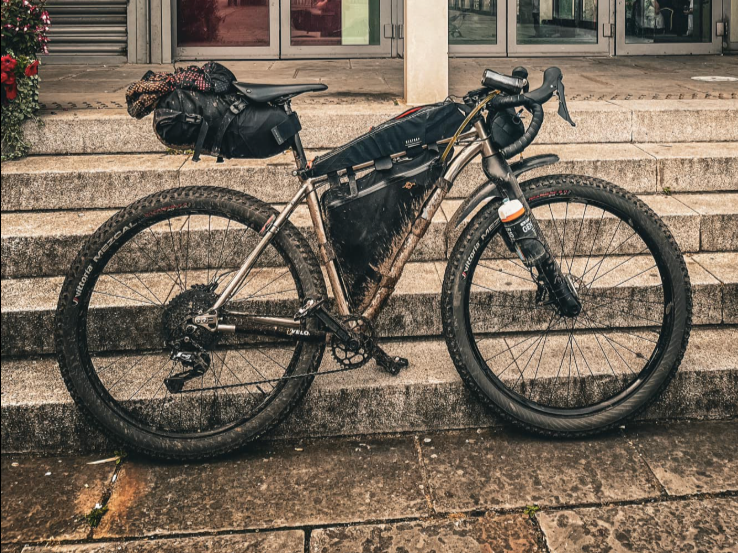

A standing gravel bike loaded with bikepacking gear, including a rear saddlebag and frame bags, positioned on stone steps with a building entrance in the background.

technical information.

  • Headset Size: -   Top cup = IS 42  , Lower cup = IS 52

  • Rear Axle: -   Boost, 12 x 148mm (Bolt through axle included).

  • Bottom bracket - 68mm x BSA standard threaded. (Non-Pinion)

  • Seat Post Size:  -   31.6mm

  • Seat Clamp Size: - 34.9mm (Included)

  • Dropper Post:  -  Internal Stealth cable routing.

  • Cable Routing - Internal cable routing (Guided). (External Option)

  • Pannier rack mounts.

  • 3 x anything cage mounts.

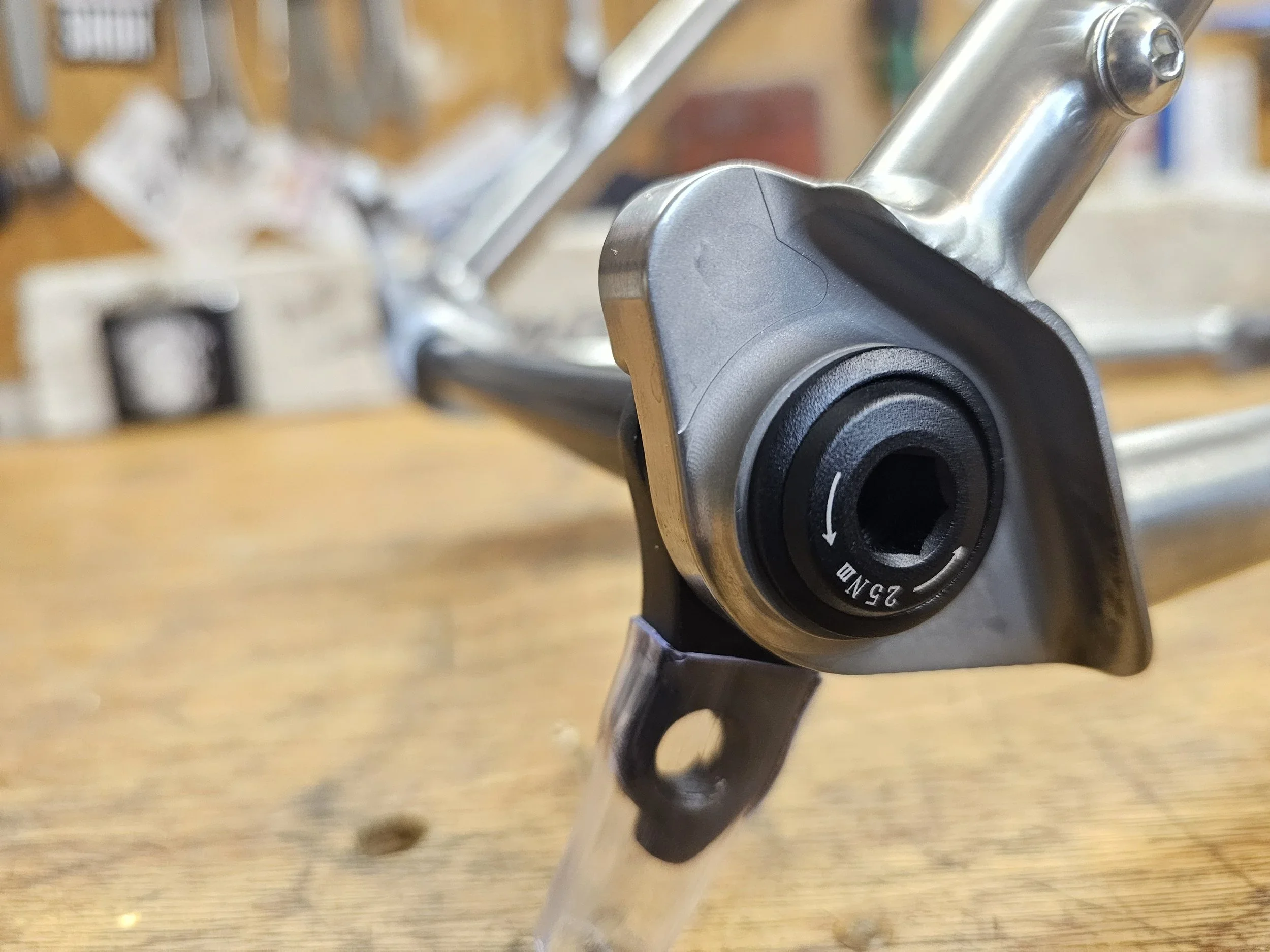

  • Sliding or fixed UDH dropouts

  • Sizes:  -  Xs, Small, Medium, Large, X-Large.

  • Max tyre size - 29x2.6”

  • Suspension fork travel - 100mm

  • Rigid fork, axle to crown - 483mm

Cyclist performing a wheelie on a bridge with river and cityscape background

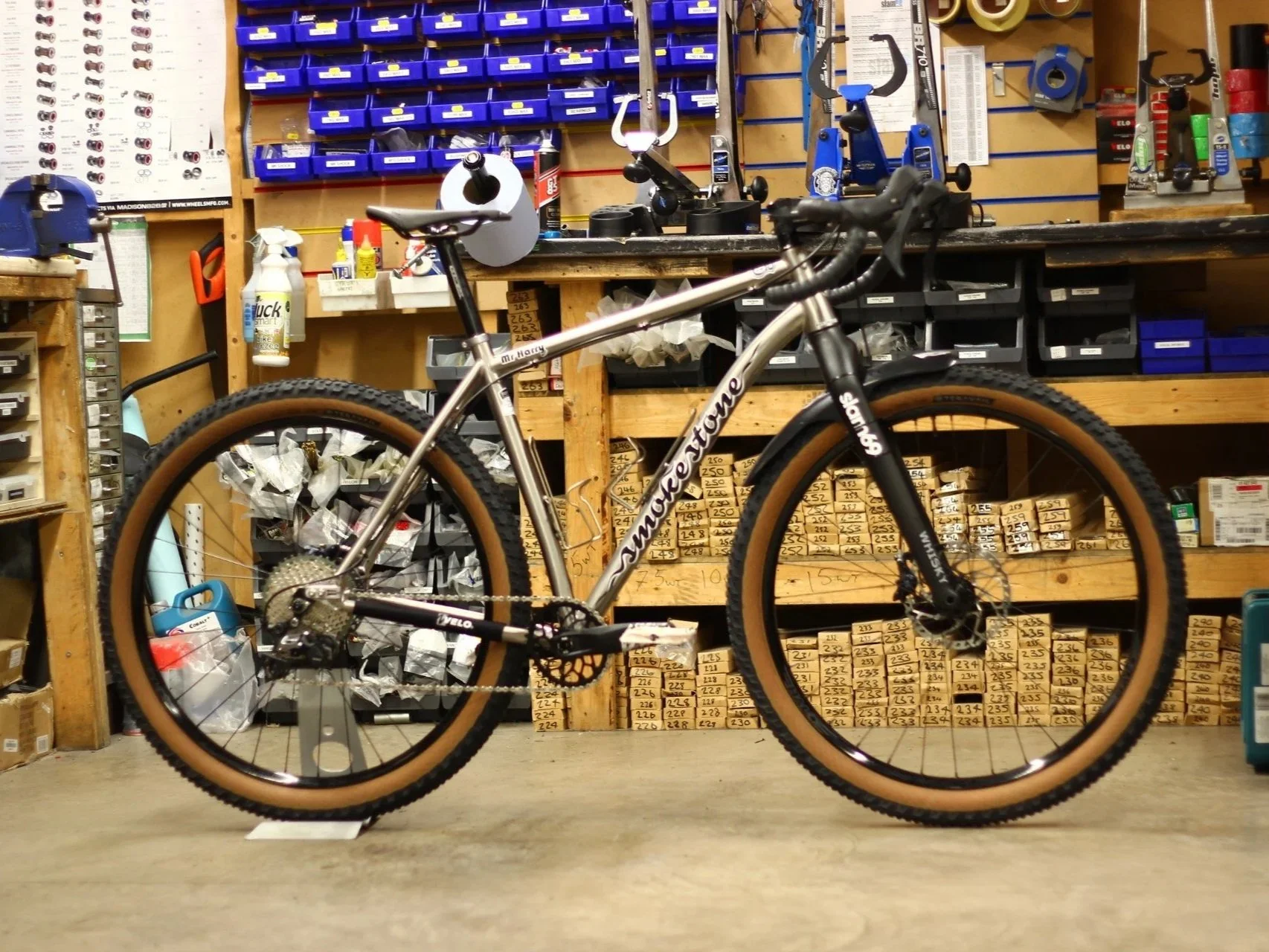

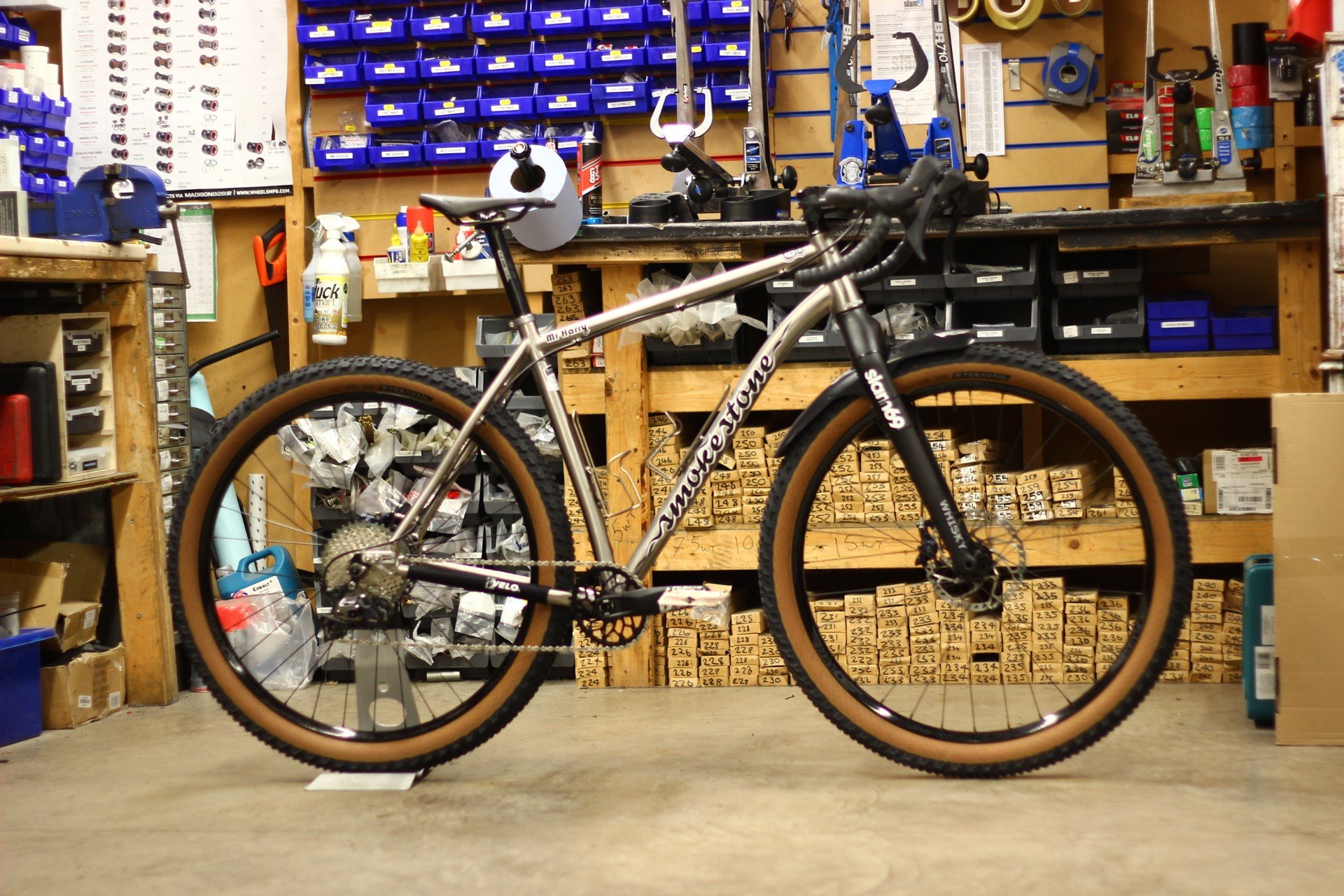

A bicycle displayed in a workshop with various tools and parts organized on shelves in the background.
